Savvy 4200

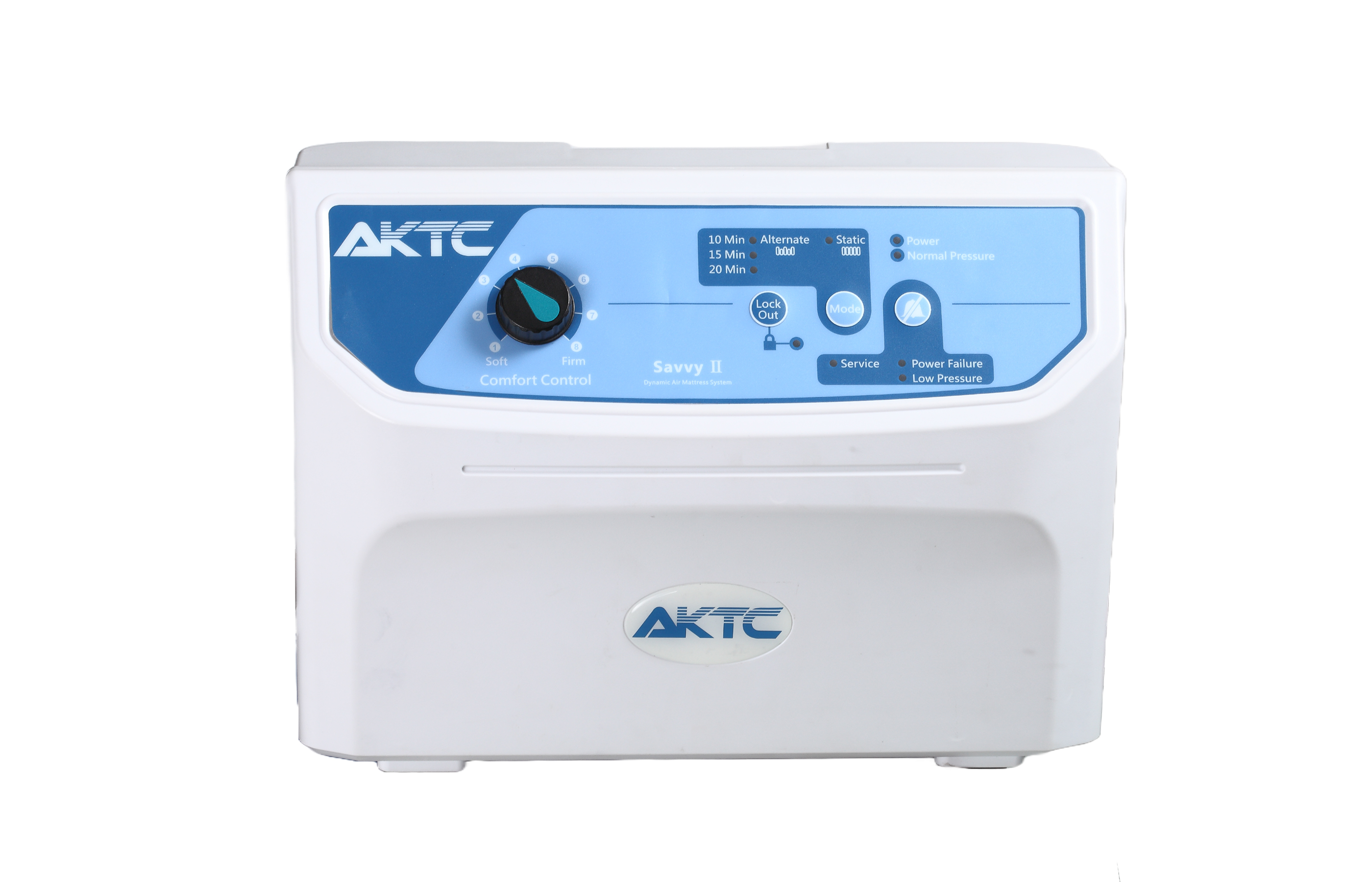

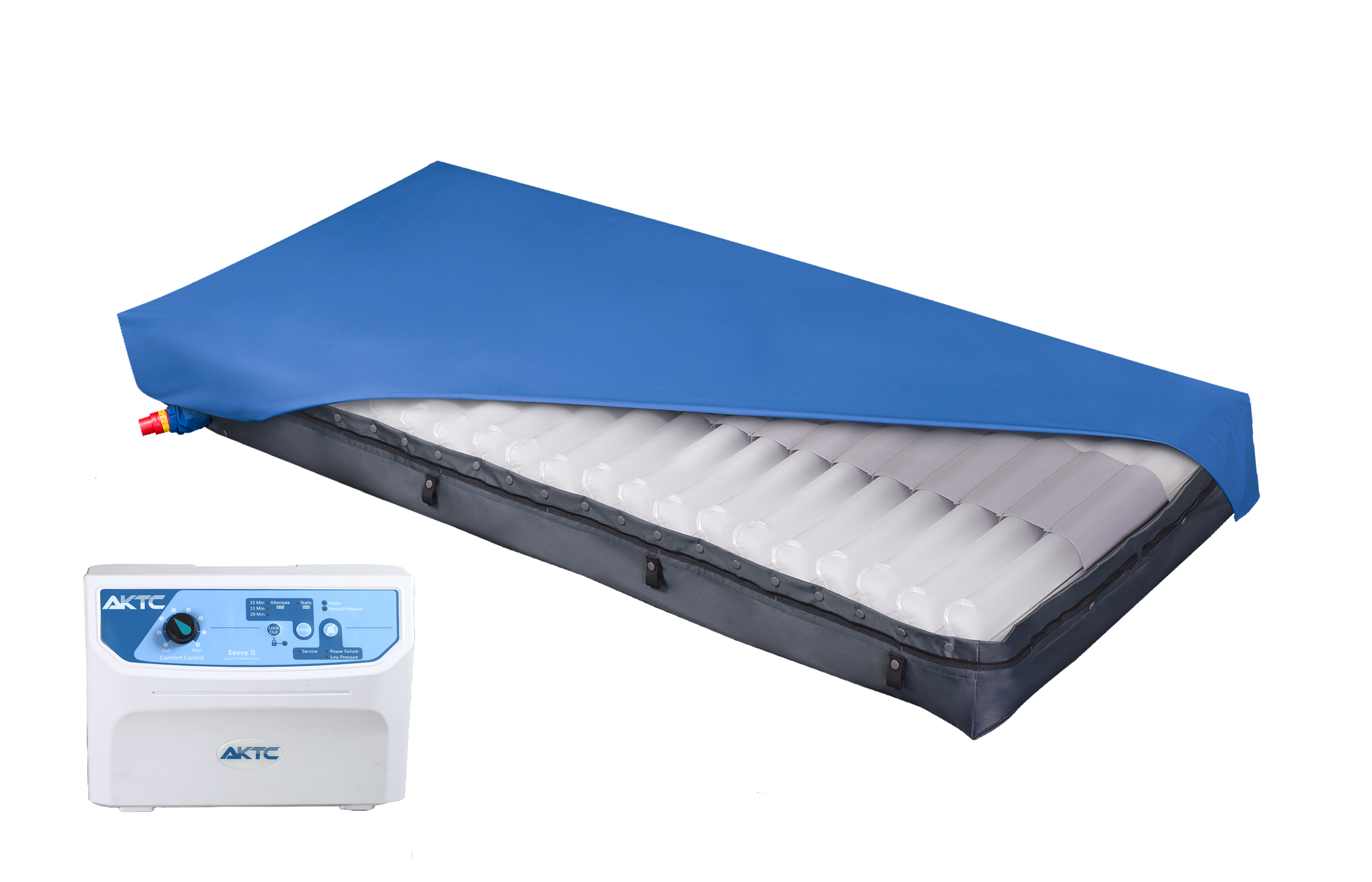

A dynamic mattress overlay system powered by a microcontroller-programmed 9.0 LPM compressor semi-digital pump, combining advanced airflow control with intelligent pressure regulation.

Catalogues

For the patient

  • TrueCare Alternating enhances patient comfort by fully re-inflating all sets of air cells before the next set deflates – Invention Patent I 543733 (August 1, 2016).
  • Innovative iLAL (independent Low Air Loss) effectively reduces moisture and skin heat on the support surface by periodically delivering a high volume of low air loss relief.
  • Adjustable analog dial comfort control.
  • Selectable alternating cycle times of 10, 15, or 20 minutes and static mode for nursing procedures. Includes an industry-standard 20-minute static-to-alternating auto-revert feature to ensure patient safety.
  • Audiovisual indicator signals notify users of power failure, low pressure, or service requirements with detailed error codes.
  • Medical-grade mattress top cover is vapor-permeable, water-resistant, and fire-retardant, helping to maintain skin integrity. Features two high-quality molded-tooth zippers for easy replacement and cleaning.
  • Dual-way “Quick-CPR” enables immediate mattress deflation in emergency situations – USA Patent 6,257,269 B1 (May 3, 2000).



For the Caregiver and Distributor

  • Dual-way “Quick-CPR” also allows immediate mattress inflation with an optional handheld inflator for rapid setup – USA Patent 6,257,269 B1 (May 3, 2000).
  • Automatic panel lockout improves safety by preventing unintended setting changes.
  • CQC (Convenient Quick Couplings) simplify air cell replacement without requiring tools – Invention Patent I 574651 (March 21, 2017).
  • Inserted-molding elastic hanger brackets automatically adjust to fit various footboard sizes.
  • Robust all-in-one hose and pump connector ensures a secure and durable connection.
  • Modular pump and mattress design allows for easy maintenance and part replacement.
  • Compliance certified: IEC 60601-1 and IEC 60601-1-2 certified; additionally, IP21 tested for IEC 60601-1-11 compliance in home healthcare environments.

Select Specifications

Air Pump

Dimensions

33 x 12 x 22 cm

Supply Voltage/Frequency

Alternating Type

Flow Rate (Liter/Minute)

9

Control Panel Type

Dial+Keypad

Mode

Alternate, Static

Full Cycle Time (Minute)

Selectable 10, 15, 20

Indicator Signals

Audiovisual Indicator Signals (Power Failure, Low Pressure, and Service)

Power Cord Type

Detachable

IEC 60601-1-8 Alarm System

Air Mattress

Height

Dimensions

Number of Cells

Cell Material

Top Cover Material

Pillow Section

Yes

independent Low Air Loss (iLAL)

Yes

CPR Valve Type

AKTC Q-CPR

SmileTurn

Maximum Patient Weight (kg)

135
