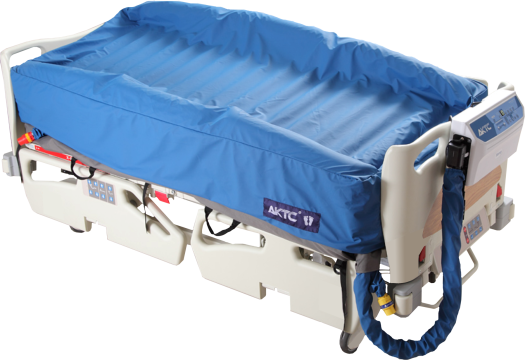

Optimal Dual Turn

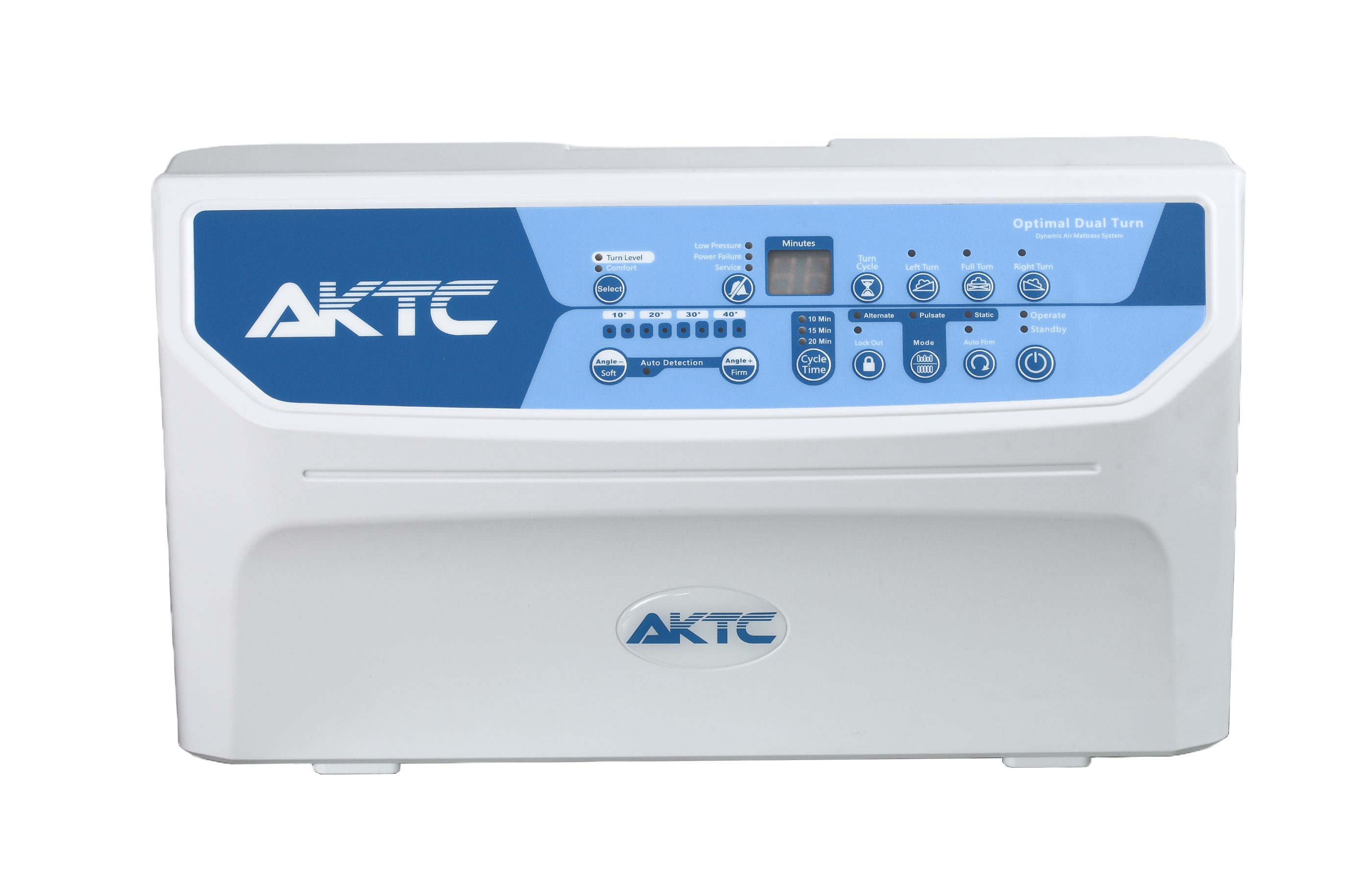

A dynamic mattress replacement system powered by a microcontroller-programmed 9.0 LPM + 9.0 LPM compressors digital pump, engineered for precision and efficiency. Equipped with a high-accuracy digital pressure transducer, it intelligently reduces power consumption once the target pressure is reached—ensuring whisper-quiet operation, exceptional energy efficiency, and long-lasting performance.

Catalogues

For the patient

Designed to support patients with Ventilator-Associated Pneumonia (VAP), Lower Respiratory Tract Infections (LRTIs), and those at risk of pressure ulcers, these systems offer comfort, care, and clinical effectiveness.
Lateral rotation and alternating therapy in one system – Covered by Invention Patent I 575176 (March 21, 2017).
Lateral rotation offers three turning modes—Left Turn, Full Turn, and Right Turn—with adjustable angles and cycle times ranging from 10 to 95 minutes.
TrueCare Alternating enhances patient comfort by fully re-inflating all sets of air cells before the next set deflates – Invention Patent I 543733 (August 1, 2016).
Innovative iLAL (independent Low Air Loss) effectively reduces moisture and skin heat on the support surface by periodically delivering a high volume of low air loss relief.
Adjustable digital comfort control with optional auto-detection recommends optimal pressure settings using advanced software algorithms.
Selectable alternating cycle times of 10, 15, 20, 25, or 30 minutes with LED display and static mode for nursing procedures. Includes an industry-standard 20-minute static-to-alternating auto-revert feature to ensure patient safety.
Auto-Firm mode allows one-touch rapid inflation for patient transport.
Continuous Low Pressure (CLP) mode offers a static low-pressure surface for patients who cannot tolerate movement but still require pressure redistribution.
Pulsate mode provides a periodic pressure-varying static surface with adjustable cycle times.
Audiovisual indicator signals notify users of power failure, low pressure, or service requirements with detailed error codes.
Medical-grade mattress top cover is vapor-permeable, water-resistant, and fire-retardant, helping to maintain skin integrity. Features two high-quality molded-tooth zippers for easy replacement and cleaning.
Dual-way “Quick-CPR” enables immediate mattress deflation in emergency situations – USA Patent 6,257,269 B1 (May 3, 2000).
Two-stage Fowler’s Detector automatically stops lateral rotation at 20 degrees and increases pressure output at 45 degrees to prevent “bottoming-out” when the patient is in a backrest position.

For the Caregiver and Distributor

Dual-way “Quick-CPR” also allows immediate mattress inflation with an optional handheld inflator for rapid setup – USA Patent 6,257,269 B1 (May 3, 2000).
Automatic panel lockout improves safety by preventing unintended setting changes.
CQC (Convenient Quick Couplings) simplify air cell replacement without requiring tools – Invention Patent I 574651 (March 21, 2017).
Inserted-molding elastic hanger brackets automatically adjust to fit various footboard sizes.
Robust all-in-one hose and pump connector ensures a secure and durable connection.
Modular pump and mattress design allows for easy maintenance and part replacement.
Compliance certified: IEC 60601-1 and IEC 60601-1-2 certified; additionally, IP21 tested for IEC 60601-1-11 compliance in home healthcare environments.
