Savvy 8200

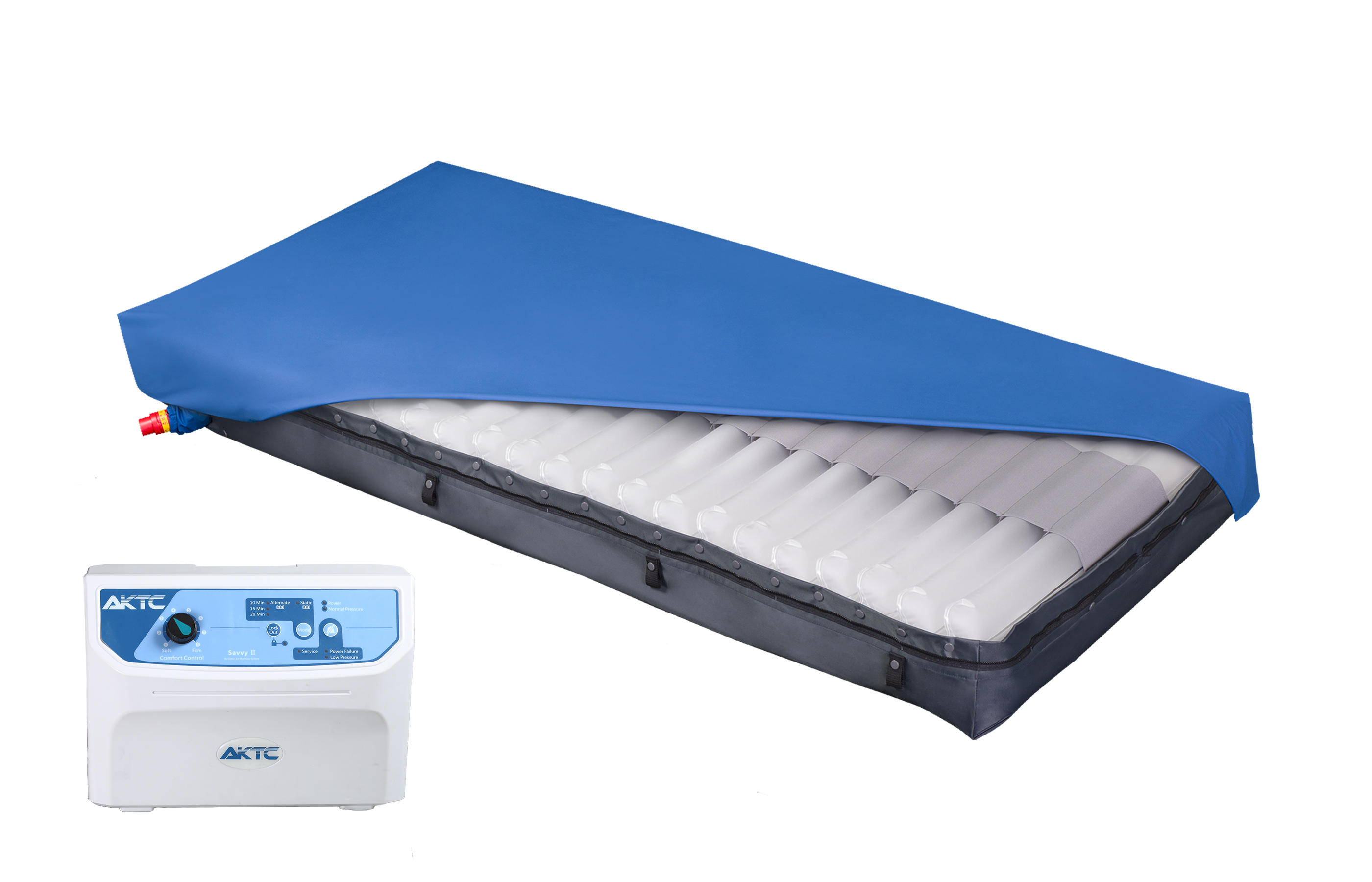

A dynamic mattress replacement system powered by a microcontroller-programmed 9.0 LPM compressor semi-digital pump, combining advanced airflow control with intelligent pressure regulation.

Catalogues

For the patient

  • TrueCare Alternating enhances patient comfort by fully re-inflating all sets of air cells before the next set deflates – Invention Patent I 543733 (August 1, 2016).
  • Innovative iLAL (independent Low Air Loss) effectively reduces moisture and skin heat on the support surface by periodically delivering a high volume of low air loss relief.

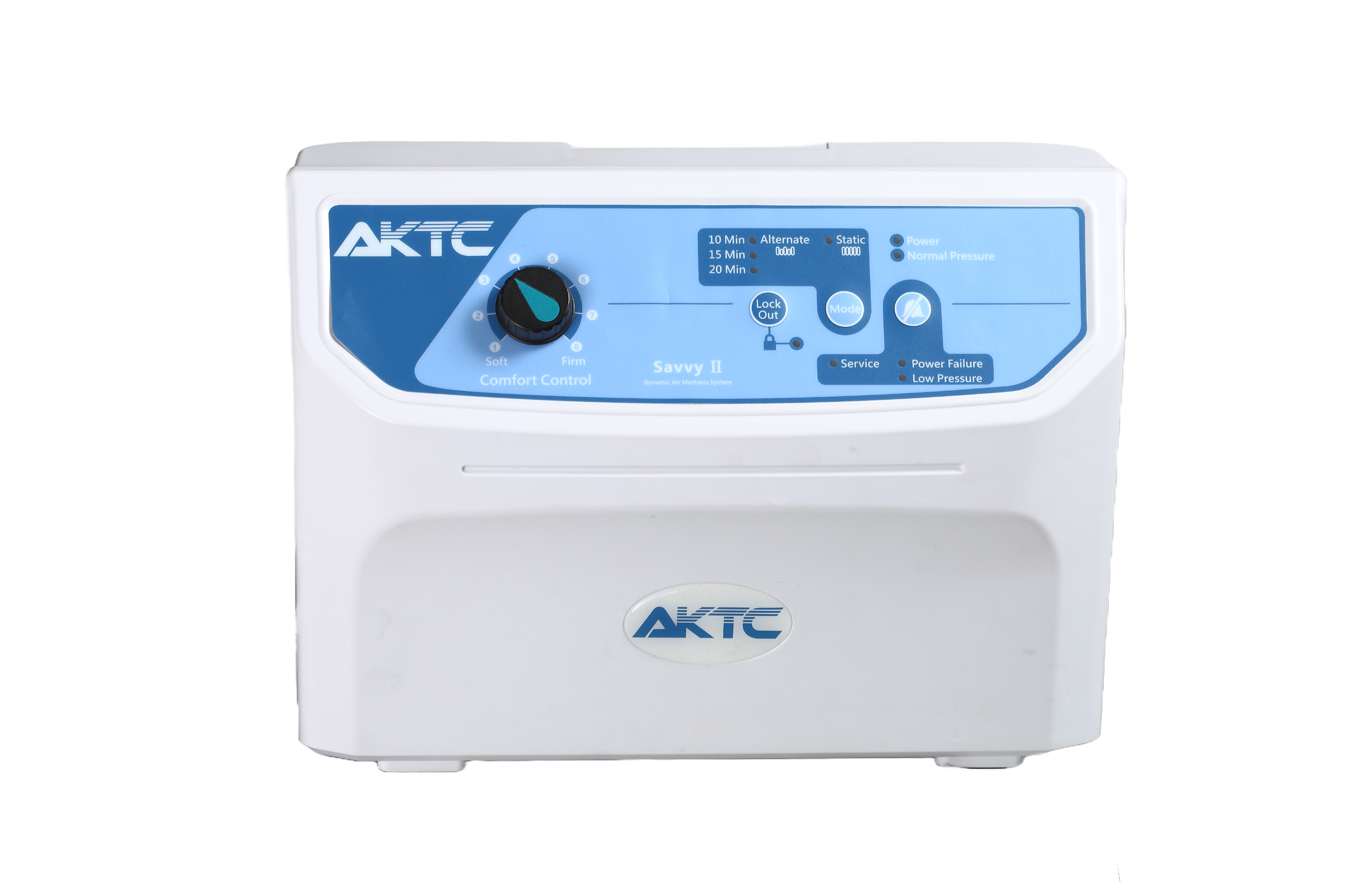

  • Adjustable analog dial comfort control.
  • Selectable alternating cycle times of 10, 15, or 20 minutes and static mode for nursing procedures. Includes an industry-standard 20-minute static-to-alternating auto-revert feature to ensure patient safety.
  • Audiovisual indicator signals notify users of power failure, low pressure, or service requirements with detailed error codes.
  • Medical-grade mattress top cover is vapor-permeable, water-resistant, and fire-retardant, helping to maintain skin integrity. Features two high-quality molded-tooth zippers for easy replacement and cleaning.
  • Dual-way “Quick-CPR” enables immediate mattress deflation in emergency situations – USA Patent 6,257,269 B1 (May 3, 2000).



For the Caregiver and Distributor

  • Dual-way “Quick-CPR” also allows immediate mattress inflation with an optional handheld inflator for rapid setup – USA Patent 6,257,269 B1 (May 3, 2000).
  • Automatic panel lockout improves safety by preventing unintended setting changes.
  • CQC (Convenient Quick Couplings) simplify air cell replacement without requiring tools – Invention Patent I 574651 (March 21, 2017).
  • Inserted-molding elastic hanger brackets automatically adjust to fit various footboard sizes.
  • Robust all-in-one hose and pump connector ensures a secure and durable connection.
  • Modular pump and mattress design allows for easy maintenance and part replacement.
  • Compliance certified: IEC 60601-1 and IEC 60601-1-2 certified; additionally, IP21 tested for IEC 60601-1-11 compliance in home healthcare environments.

Select Specifications

Air Pump

Dimensions

33 x 13 x 24 cm

Supply Voltage/Frequency

Alternating Type

Flow Rate (Liter/Minute)

9

Control Panel Type

Dial+Keypad

Mode

Alternate, Static

Full Cycle Time (Minute)

Selectable 10, 15, 20

Indicator Signals

Audiovisual Indicator Signals (Power Failure, Low Pressure, and Service)

Power Cord Type

Detachable

Air Mattress

Height

Dimensions

Number of Cells

Cell Material

Top Cover Material

Pillow Section

Yes

Cell-on-Cell Design

Yes

independent Low Air Loss (iLAL)

Yes

CPR Valve Type

AKTC Q-CPR

Raised Side Bolsters with Bolster Release Valve

SmileTurn

Maximum Patient Weight (kg)

180
